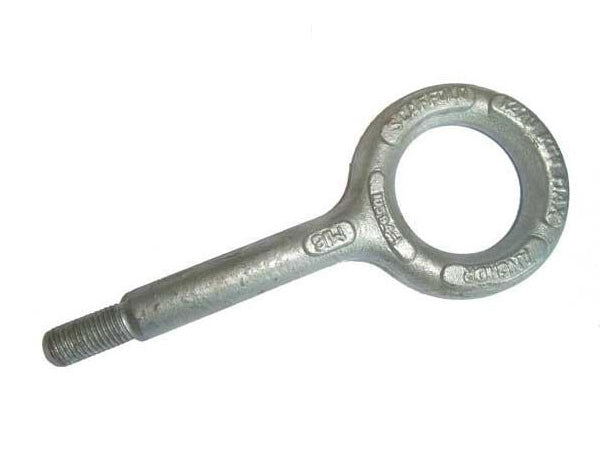

M16 Scaffold Ring Bolt

Ringbolt Installation Instructions 1. Screw the ringbolt into the anchor a minimum of 8 full turns. The end of the ringbolt must not touch the bottom of the anchor. 2. The ringbolt should be turned back a maximum of 1 turn (rather than forward) to align the ring with the scaffold tube. 3. DO NOT over-tighten the ringbolt. 4. DO NOT use a scaffold tube to tighten the ringbolt. ALWAYS . Use the correct diameter drill bit . Clean the hole thoroughly . Use the correct setting punch . Drive punch until tone changes NEVER Over-tighten the ringbolt
